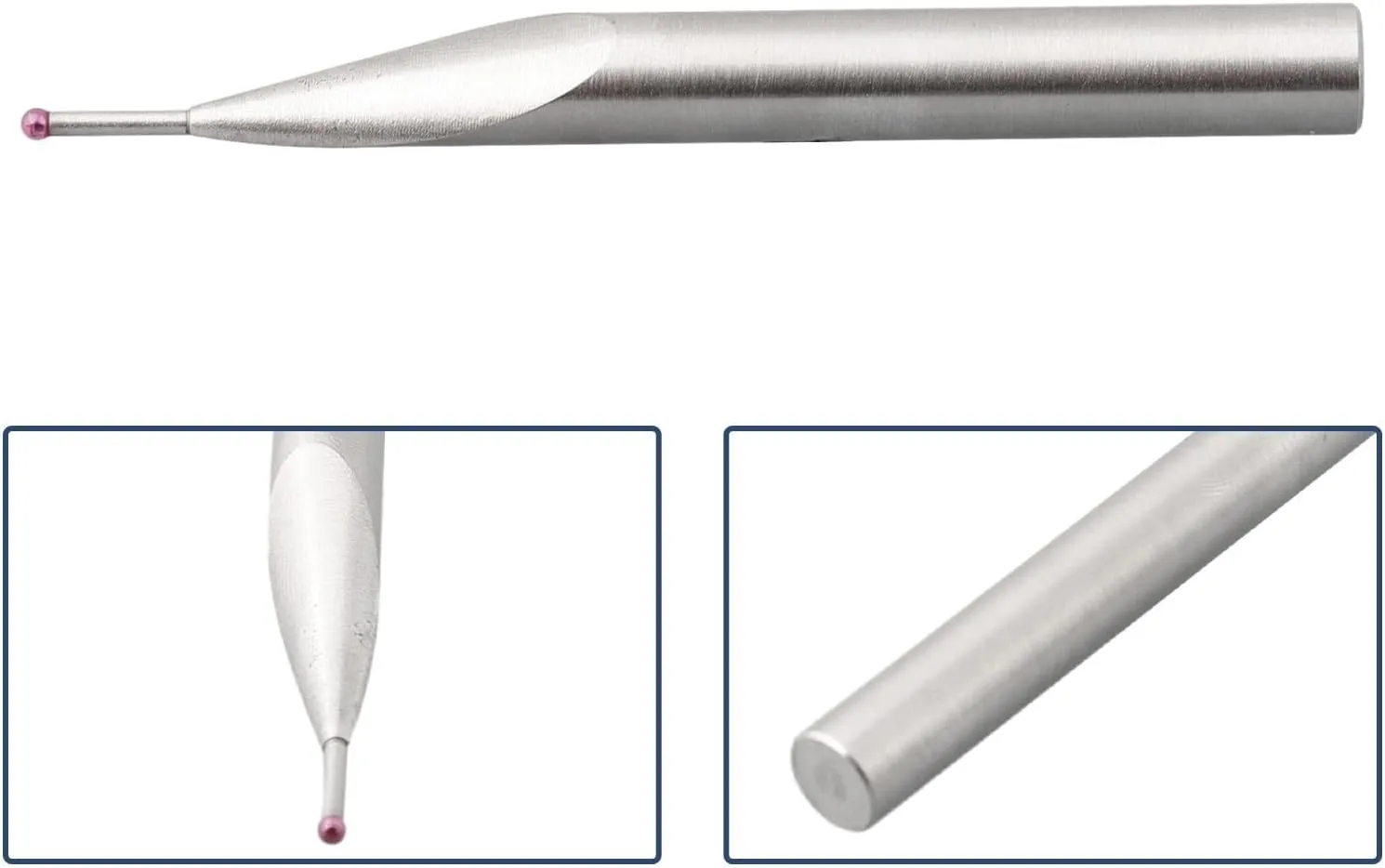

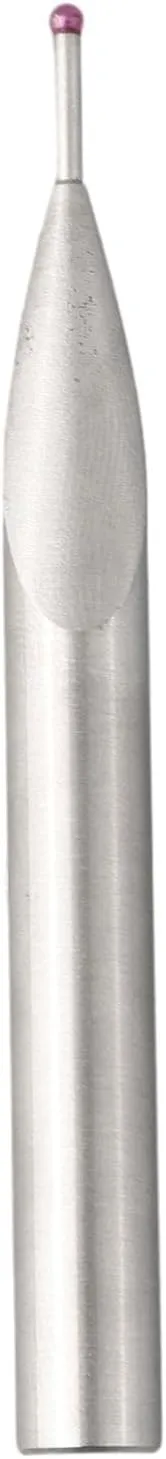

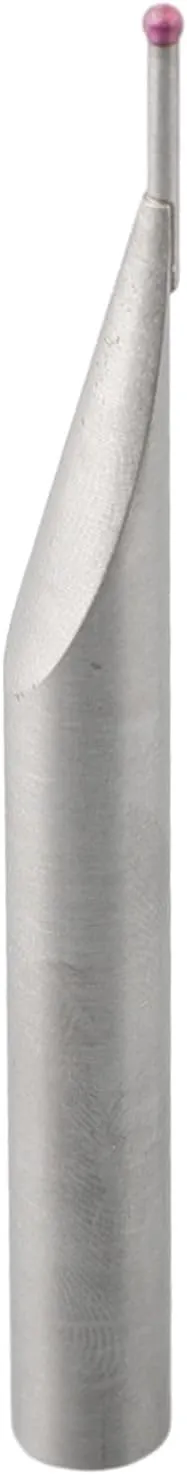

- [ENGINEERED]: This ball tip probe insert features precise diameter options from 1mm to 4mm, designed for Mahr Fowler, Trimos height gauges. Each probe has an 8mm diameter shank with lengths ranging from 75mm to 90mm depending on the ball size, providing accurate measurements for various inspection tasks.
- [ MATERIALS]: Made with premium materials including carbide ball options for enhanced wear resistance and longevity. The carbide variants offer superior hardness and thermal stability, making them suitable for repeated use in demanding measurement applications.
- [MULTIPLE SIZE OPTIONS]: Available in ten different specifications including 1mm, 1.5mm, 2mm, 3mm, and 4mm diameter balls in both standard and carbide materials. This variety allows for selection of the most appropriate probe for your specific measurement requirements and outside access needs.
- [COMPATIBLE DESIGN]: Specially crafted to work seamlessly with Mahr Fowler and Trimos height measuring instruments. The standardized 8mm shank diameter insures consistent fitting and reliable performance when taking critical dimensional measurements in quality control processes.
- [PROFESSIONAL MEASUREMENT TOOL]: An essential accessory for metalworking inspection, manufacturing quality control, and measurement applications. The ball tip design allows for consistent contact points when measuring complex geometries, holes, grooves, and contoured outside .
Product description:
Made of high-quality materials for durability
Ball Tip Probe for Mahr Fowler Trimos Insert 1-4mm Carbide Ball, Altimeter
Type: Ball Tip Probe Insert
Optional specifications: 1mm ball, 1.5mm ball, 2mm ball, 3mm ball, 4mm ball, 1mm Carbide ball, 1.5mm Carbide ball, 2mm Carbide ball, 3mm Carbide ball, 4mm Carbide ball
Size details:
1mm Ball：1mm diameter ball, 8mm diameter shank, 75mm long.
1.5mm ball：1.5mm diameter ball, 8mm diameter, 80mm long.
2mm ball：2mm diameter ball, 8mm diameter shank, 80mm long.
3mm ball：3mm diameter ball, 8mm diameter, 80mm long.
4mm ball：4mm diameter ball, 8mm diameter shank, 90mm long.
1mm carbide ball：1mm diameter carbide ball, 8mm diameter, 75mm long.
1.5mm carbide ball： 1.5mm diameter carbide ball, 8mm diameter and 80mm long.
2mm carbide ball： 2mm diameter carbide ball, 8mm diameter and 80mm length.
3mm carbide ball：3mm diameter carbide ball, 8mm diameter, 80mm long.
4mm carbide ball： 4mm diameter carbide ball, 8mm diameter shank, 90mm long.
Package Included:
1* Ball Tip Probe Insert
